Connecting the Trolley to the Impinj Speedway reader

1. Connect the trolley reader to the ethernet port of the laptop

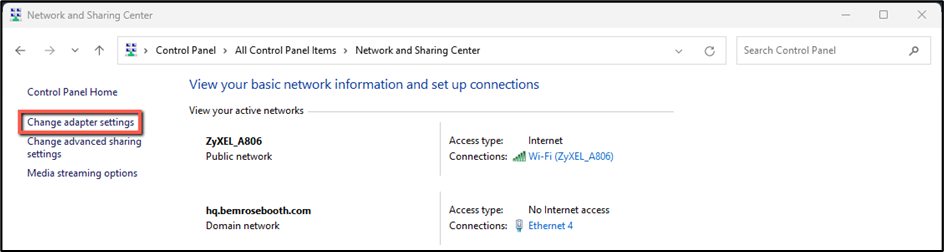

2. Navigate to Control Panel - Network and Internet - View Network status and tasks and click Change adapter settings

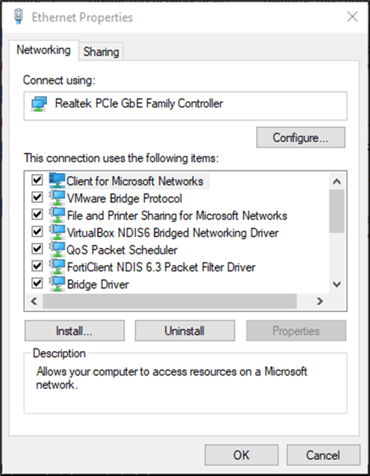

3. Right click on your Ethernet adapter and click Properties

4. Navigate to Internet Protocol Version 4 (TCP/IPv4) and click into it

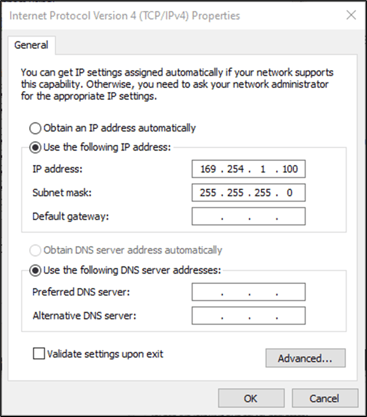

7. Change the IP address to be on the same range as the reader

8. Click OK
